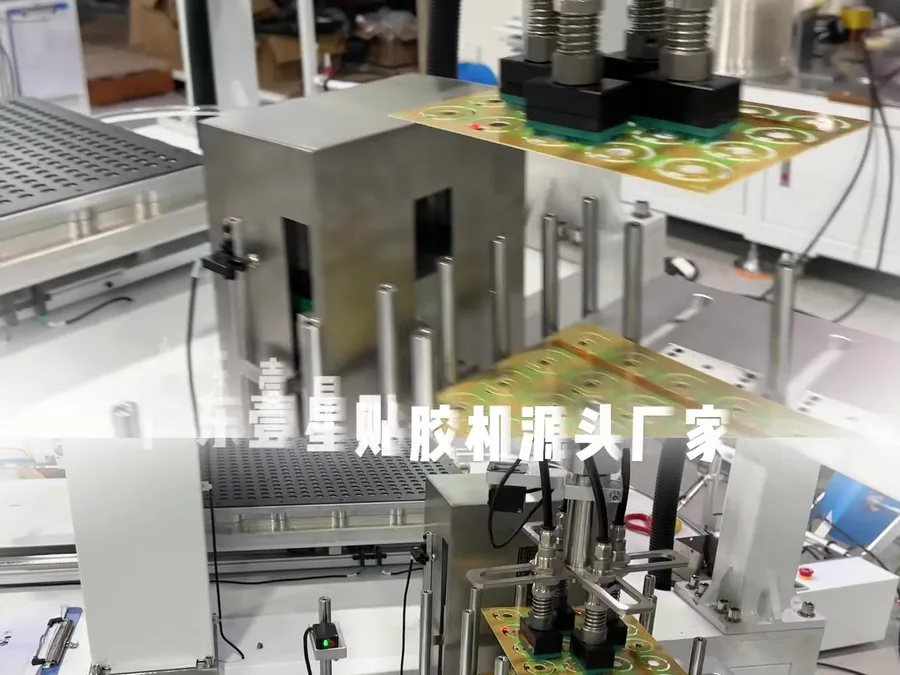

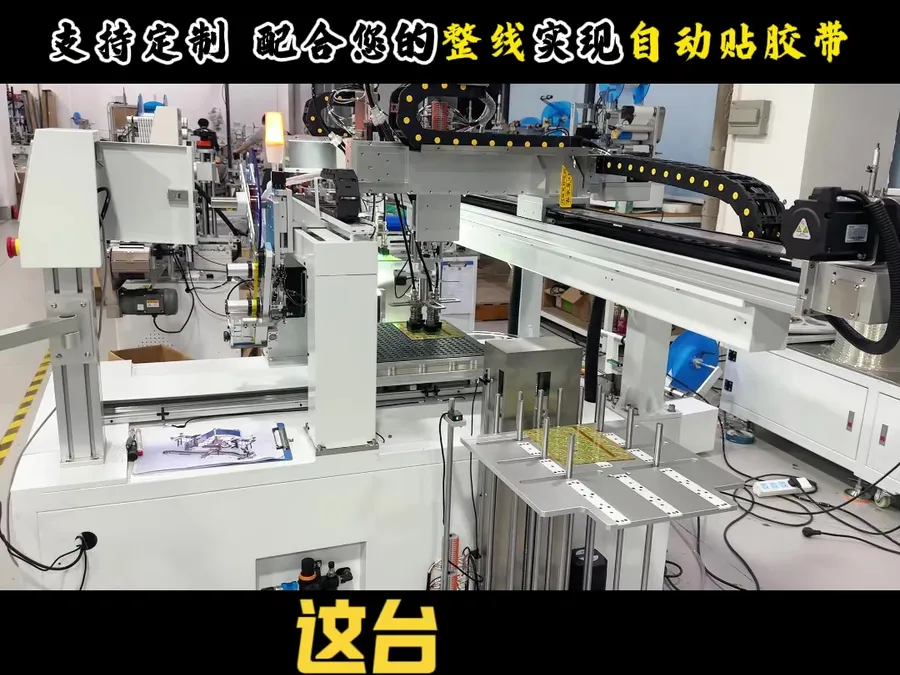

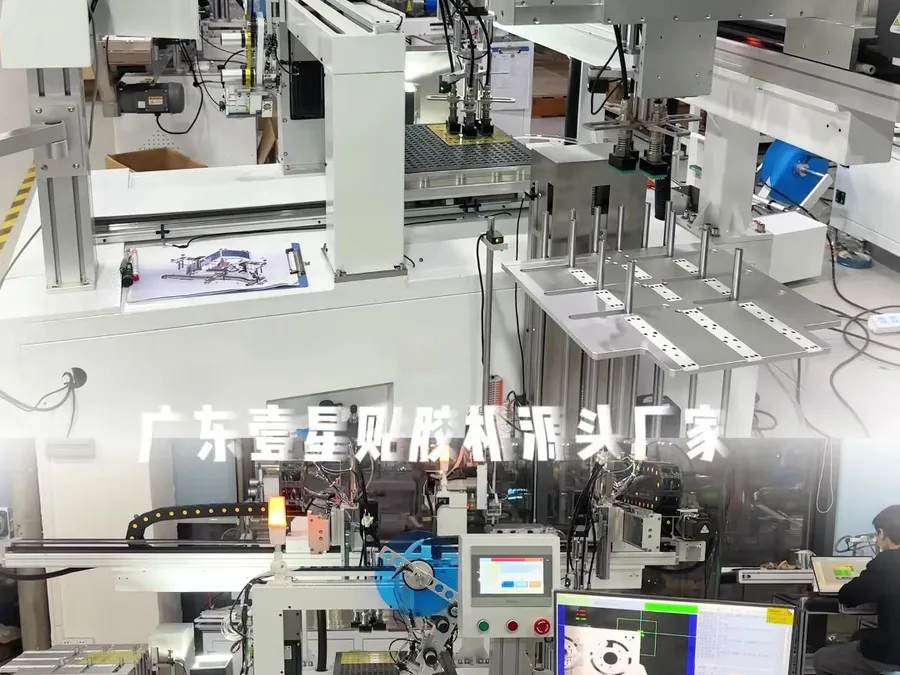

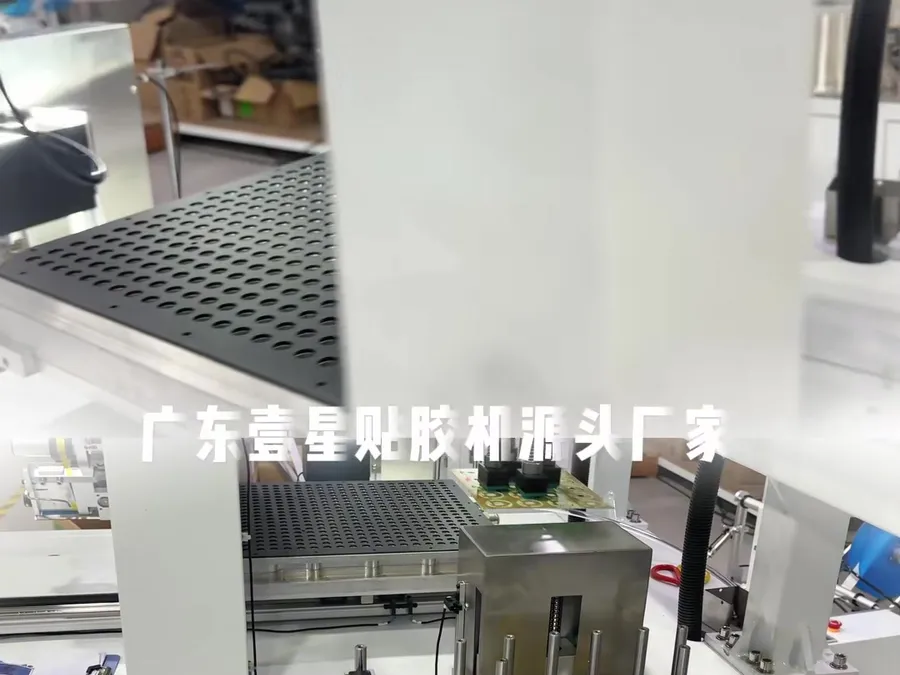

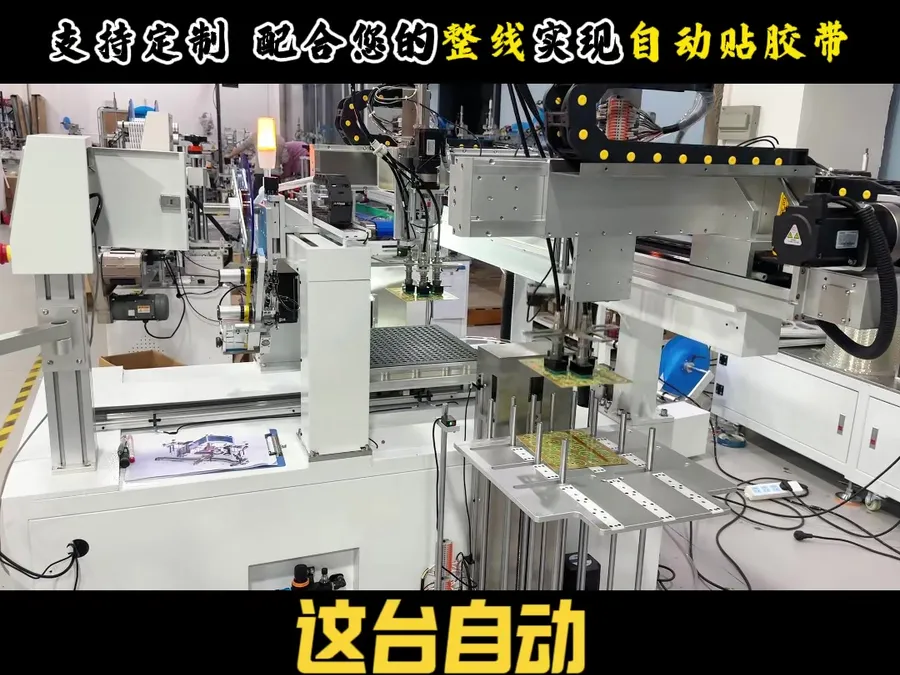

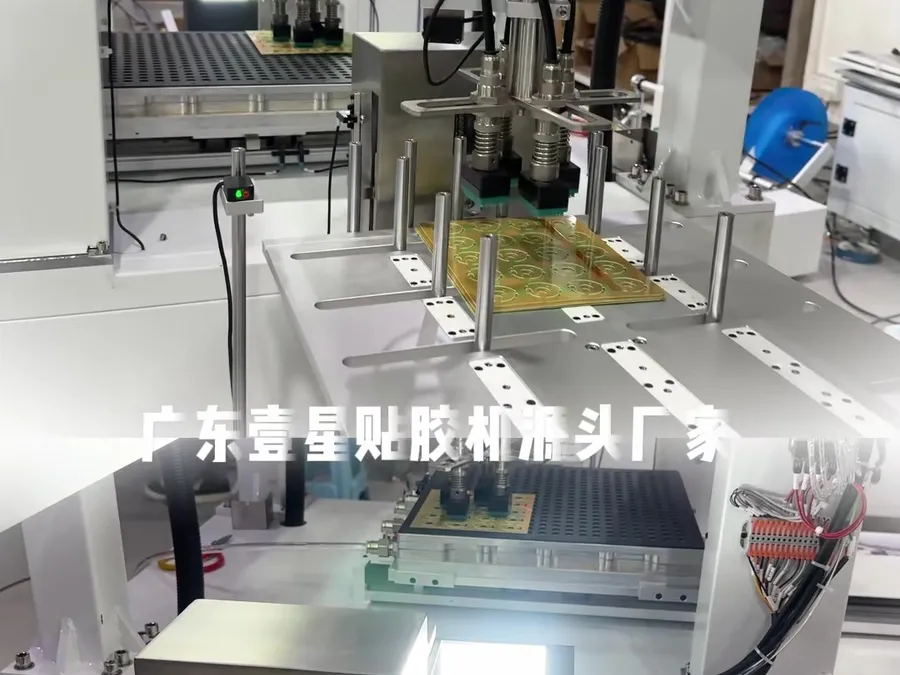

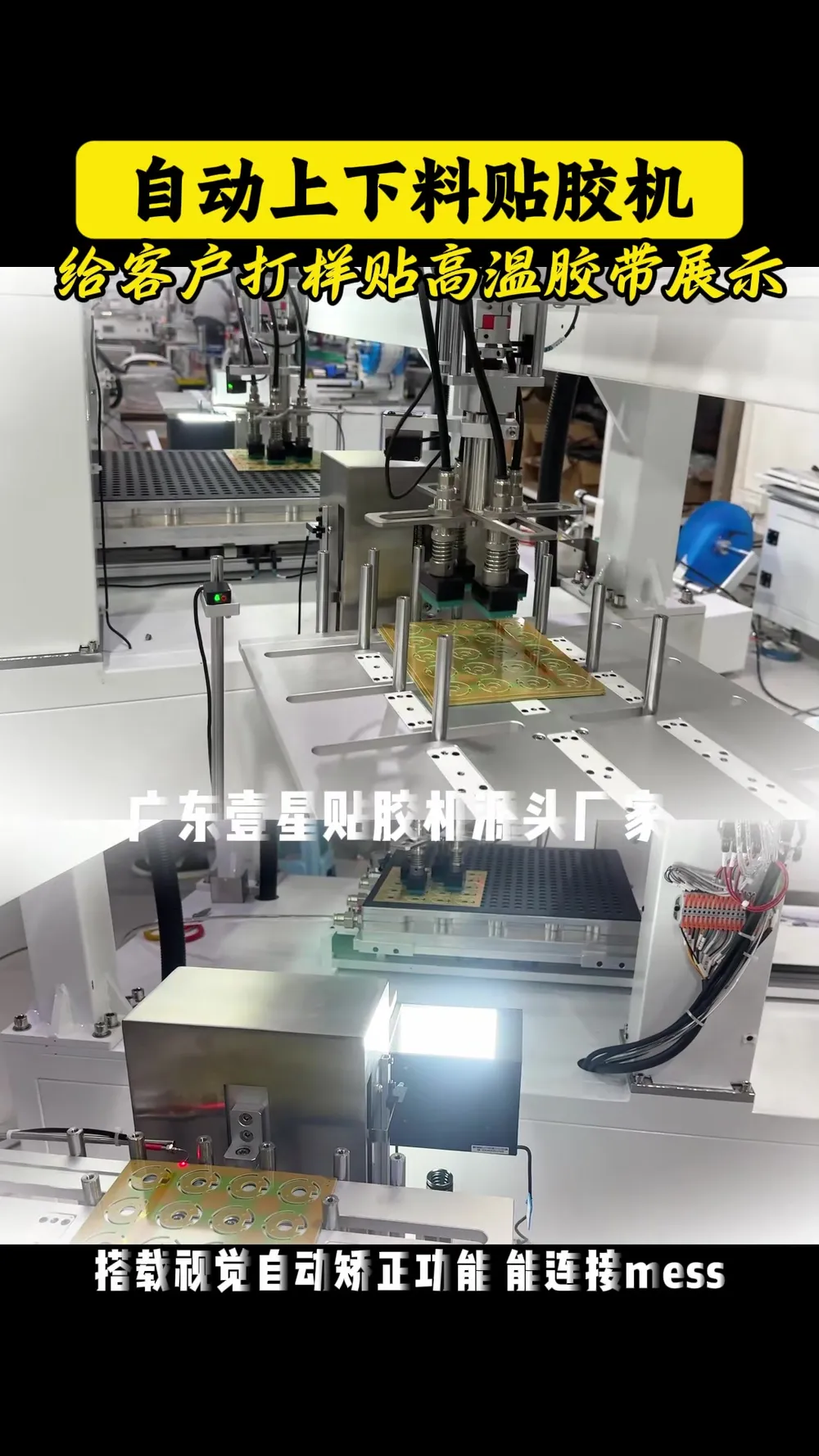

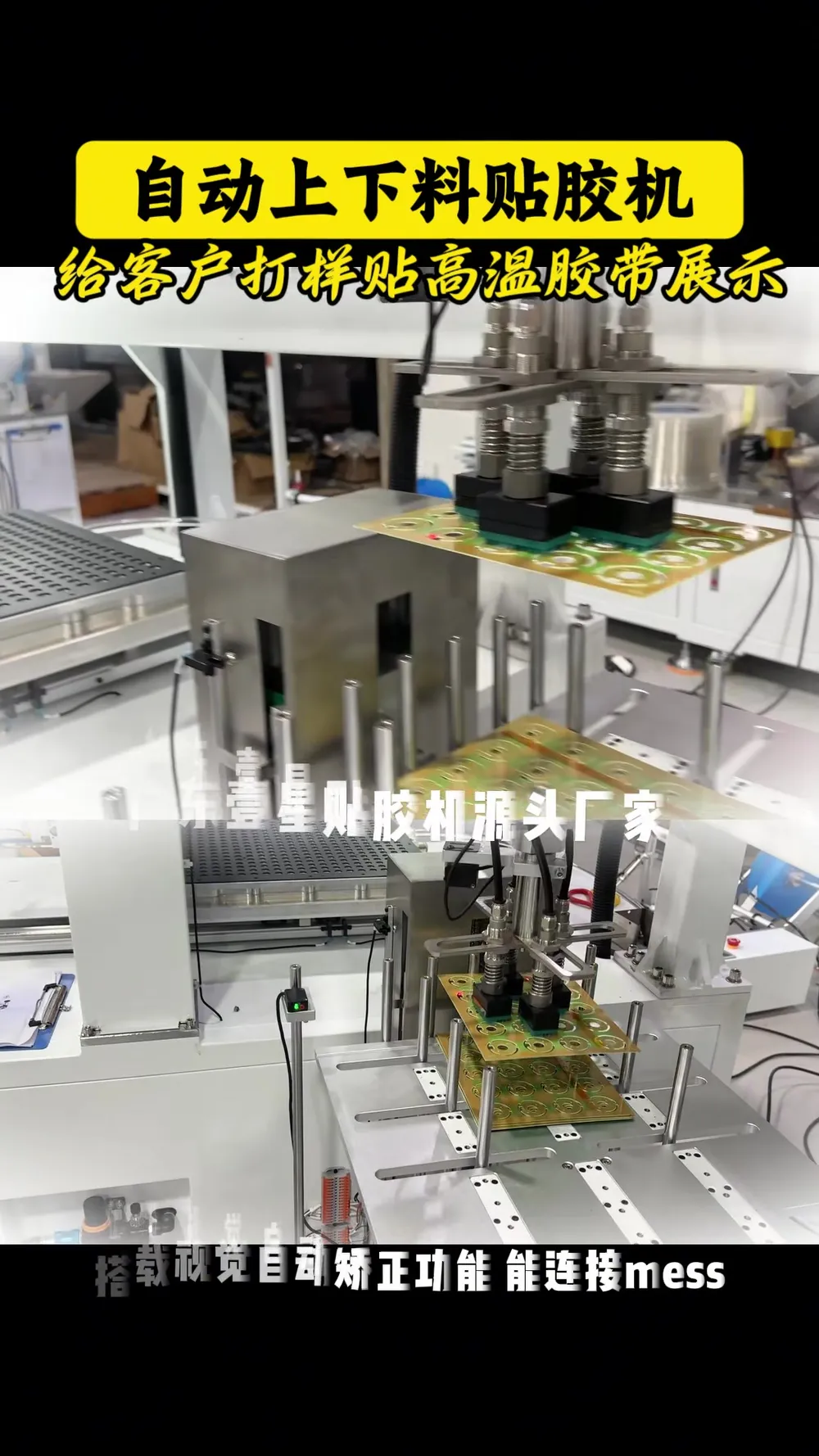

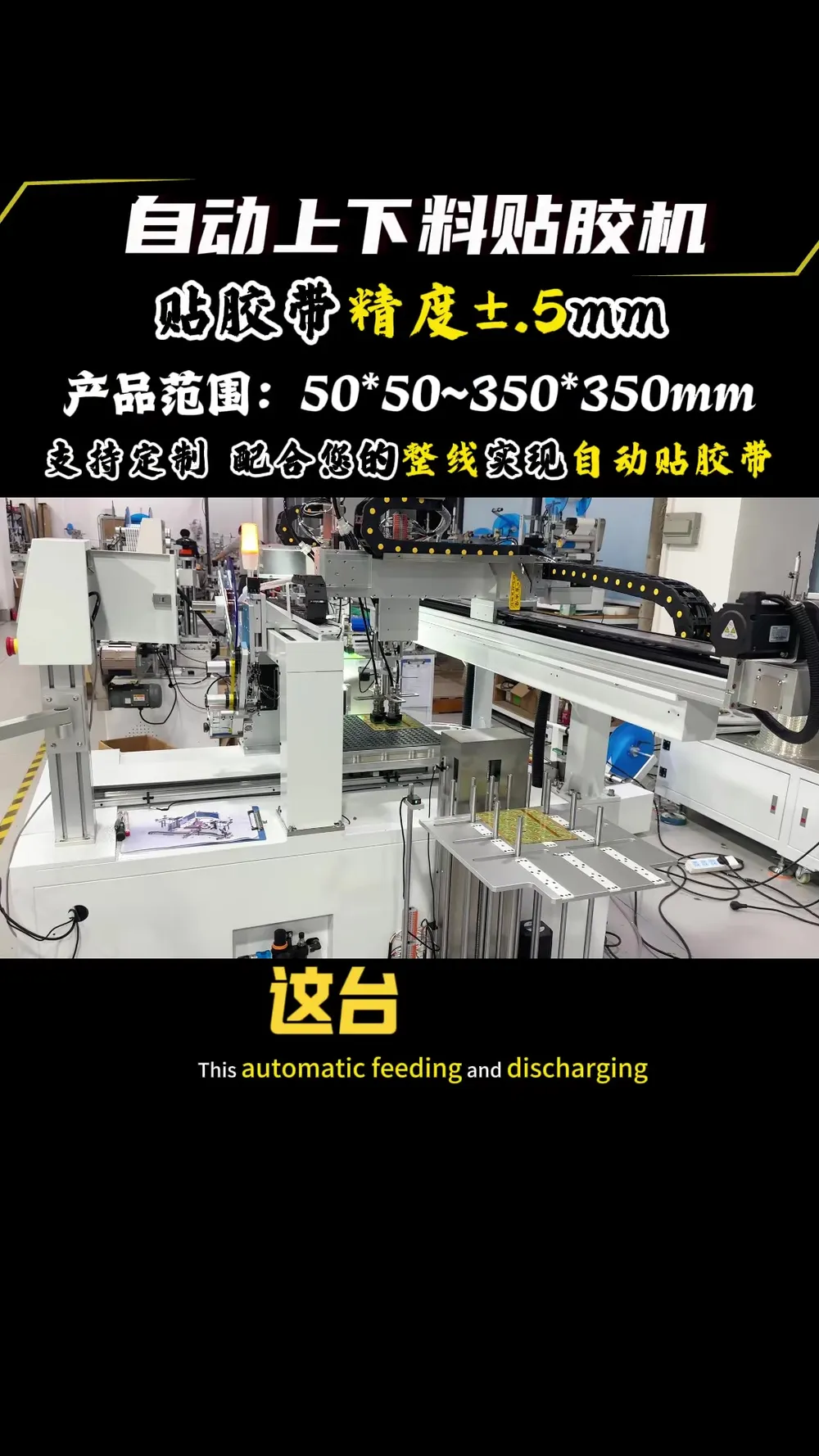

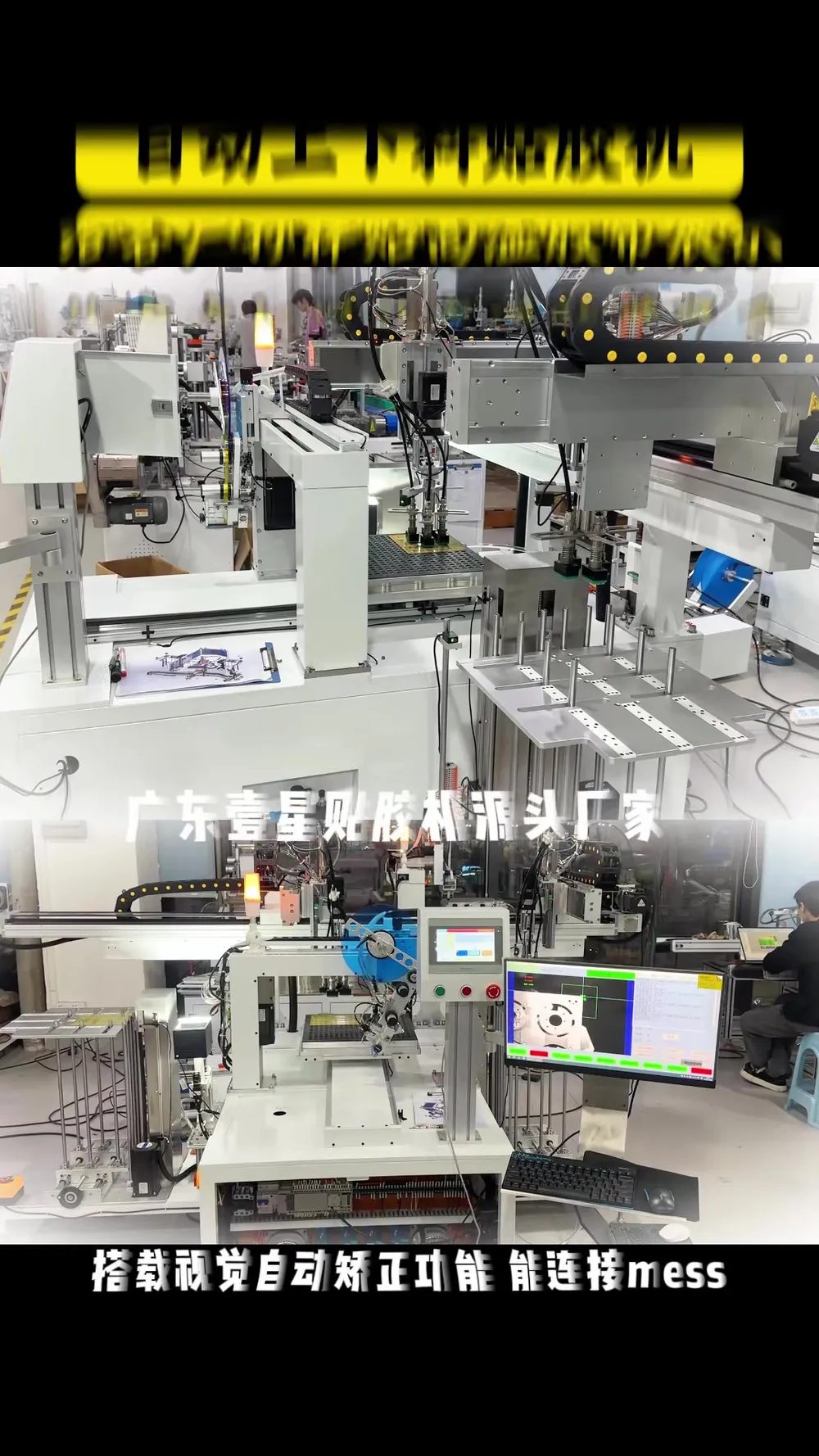

Vision-corrected Tape-application Machine
Automatic loading and unloading tape-application machine equipped with CCD vision alignment, high precision and efficiency, one person can control 5 machines.
- Precision
- ±0.5mm
- Speed / output
- 1200 pcs/hour
- Worktable / size
- 50*50 ~ 350*350mm
Free sample testing Customizable
Overview
This automatic loading and unloading tape-application machine is specially designed for PCB boards, sheets, and hardware/plastic parts with sizes from 50*50 to 350*350mm, equipped with a CCD vision automatic deviation correction and positioning system to achieve high-precision application of ±0.5mm. The equipment supports fully automatic operation with a production efficiency of 1200 pcs/hour, allowing a single person to operate 5 machines simultaneously, significantly saving labor and improving production efficiency. In addition, this equipment supports connection to MES systems and custom/non-standard integration with complete production lines, and is widely used in electronics, PCB processing, and semiconductor packaging industries.
Key features

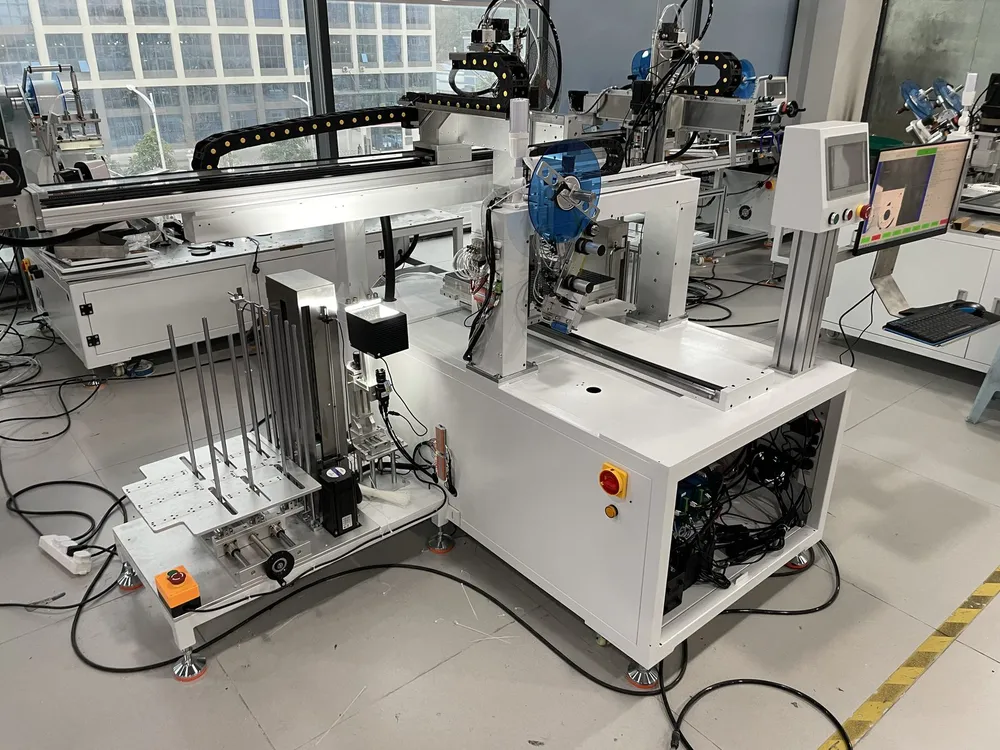

- Automatic loading and unloading
- CCD vision automatic deviation correction and positioning
- Supports complete line integration and customization
- Can connect to MES systems

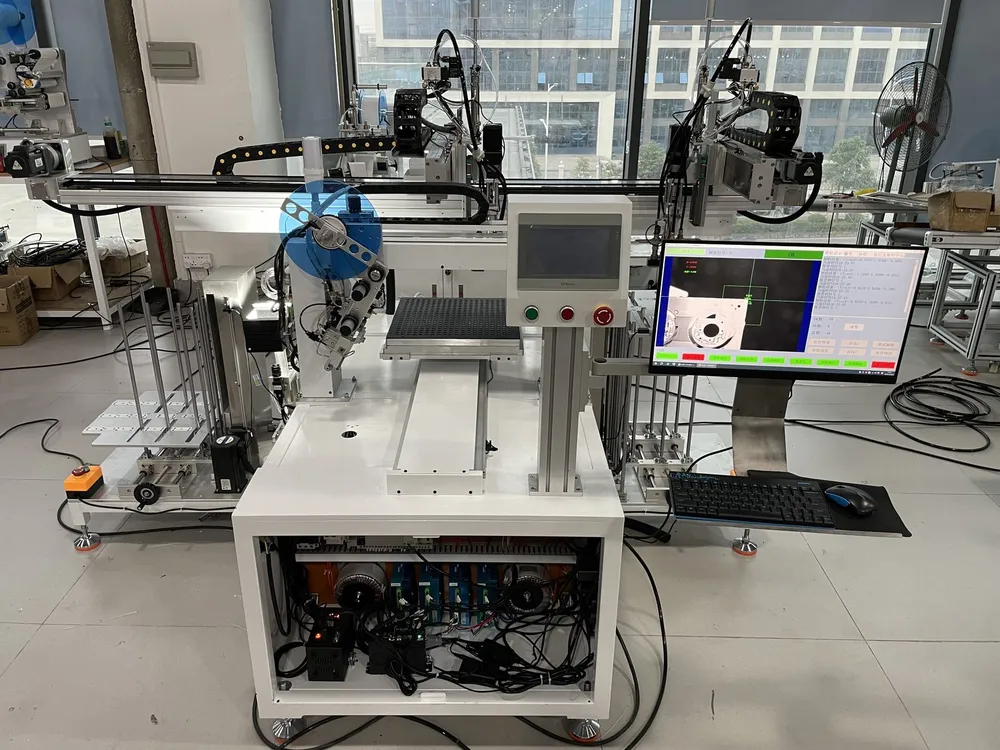

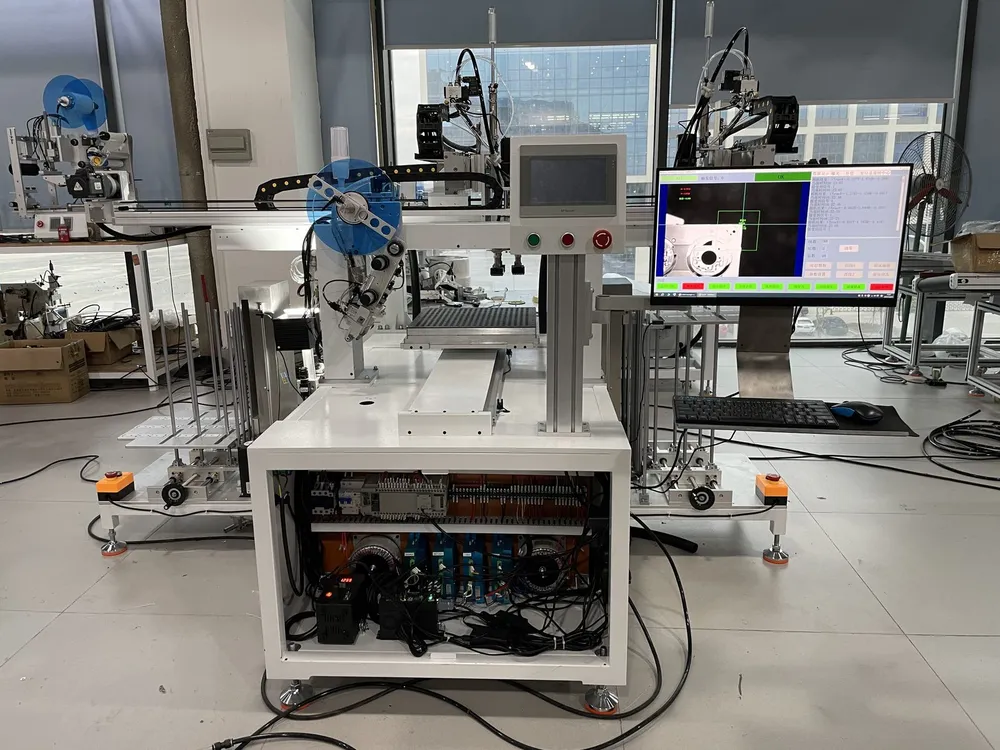

- Vision correction system
- Vision correction system
- Vision alignment system
- Automatic vision alignment
Advantages
- High efficiency (1200 pcs/hour)
- High degree of automation, improving production efficiency
- Wide range of applicable product sizes
- Fully automatic operation saves labor
- One person can operate 5 machines
- High precision and labor-saving
Applications
