Applications
Tape, film and labels on plastic housings, panels, lids and small parts, standalone or on the line.
Updated
Molded housings, panels and lids take tape, film or labels on flat faces. Flat parts in continuous production are taped by the inline conveyor tape applicator at ±2 mm and 500 mm/s, and protective film up to 450 mm wide is laminated and cut by the wide-format film applicator. Parts that need exact placement are aligned by camera on the vision-aligned tape applicator at ±0.5 mm. For labels, the semi-automatic flat surface labeler labels plastic lids at ±0.5 mm and the high-precision model applies small labels at ±0.3 mm.
For this industry we recommend 5 of the 56 models on this site. Each is listed below with the accuracy and speed printed in our catalog; the figures are ratings of the standard models and exclude product and label or tape tolerances.
Standard models from our catalog that handle the products and the label or tape jobs described above.
Brochure p. 14 ±2 mm The YIXING inline conveyor tape applicator tapes flat parts in one continuous sequence: the part is loaded, the tape is cut automatically and applied, and the part is unloaded. An automatic part-separating function can be added and any size can be custom-built. It tapes at ±2 mm and 500 mm/s and weighs 150 kg.
Custom builds available Wide-format applicator that laminates protective film or tape up to 450 mm wide onto flat parts held on a vacuum platform, then cuts it automatically.
Custom builds available ±0.5mm Tape applicator with CCD vision alignment and automatic loading and unloading, for PCBs, sheets and hardware or plastic parts from 50 × 50 mm to 350 × 350 mm.

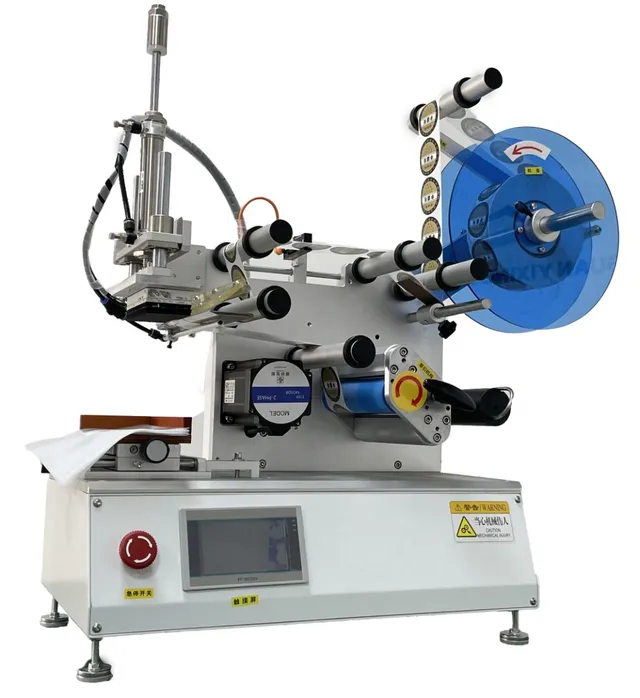

Brochure p. 22 ±0.5 mm The YIXING semi-automatic flat surface labeling machine applies labels to the top surface of bags, boxes and plastic lids by suction, with vacuum and air-blow working together. Products are placed one at a time in a fixture; accuracy is ±0.5 mm at 15–25 pcs/min, for items up to 200 × 200 mm and 120 mm tall.
Brochure p. 23 ±0.3 mm The YIXING semi-automatic high-precision labeling machine applies small labels to the top surface of electronic components, bags, boxes and plastic lids at ±0.3 mm accuracy. Products sit one at a time in a fixture and labels are applied by suction (vacuum + air-blow) at 15–25 pcs/min. It needs 0.4–0.6 MPa air.
Catalog accuracy and speed of the recommended models, with the products each one suits.
| Model | Type | Accuracy | Speed | Suitable products |
|---|---|---|---|---|
| Inline Conveyor Tape Applicator | Tape applicators | ±2 mm | 500 mm/s | Long plastic strips, Flat strip-shaped parts, Flat parts |
| Wide-Format Film & Tape Applicator (450 mm) | Tape applicators | Built to order | — | Glass and acrylic panels, Tablet and phone accessories, Electronic screens and housings |
| Vision-Aligned Tape Applicator with Auto Loading & Unloading | Tape applicators | ±0.5mm | About 1,200 pcs/hour | PCBs and FPCs, Sheets and panels, Hardware parts |
| Semi-Automatic Flat Surface Labeling Machine | Labeling machines | ±0.5 mm | 15–25 pcs/min | Packaging bags, Packaging boxes, Plastic lids |
| Semi-Automatic High-Precision Labeling Machine | Labeling machines | ±0.3 mm | 15–25 pcs/min | Electronic components, Packaging bags, Packaging boxes |
Collected from the product pages of the recommended machines.
Inline Conveyor Tape Applicator, Wide-Format Film & Tape Applicator (450 mm), Vision-Aligned Tape Applicator with Auto Loading & Unloading, Semi-Automatic Flat Surface Labeling Machine, and Semi-Automatic High-Precision Labeling Machine. The accuracy and speed of each model are in the comparison table above; every figure is the catalog rating of the standard model. Products outside these ranges can be handled by a custom machine.
Yes. Send us your products with the labels or tape you use, and we test them on a matching machine free of charge before you decide.
Flat parts taped on a flat face, such as the long plastic strips and flat strip-shaped parts in the brochure samples. Uneven parts suit the dual-head magnetic unloading model instead.
Protective film and wide adhesive tape up to 450 mm wide on flat parts such as panels, screens, housings and plates.
The CCD vision system corrects the position of each part, for a taping accuracy of ±0.5 mm.
From the Vision-Aligned Tape Applicator with Auto Loading & Unloading page
By suction: vacuum picks up the label, and suction and air-blow work together to apply it to the product's top surface.
Share your product, label or tape specs and target output, and we will propose a configuration and quote.
